CAD-MCP is an innovative CAD control service that allows controlling CAD software for drawing operations through natural language instructions.
CAD-MCP Server (CAD Model Control Protocol Server)
|
Project Introduction
CAD-MCP is an innovative CAD control service that allows controlling CAD software for drawing operations through natural language instructions. This project combines natural language processing and CAD automation technology, enabling users to create and modify CAD drawings through simple text commands without manually operating the CAD interface.
Features
CAD Control Functions
- Multiple CAD Software Support: Supports mainstream CAD software including AutoCAD, GstarCAD (GCAD) and ZWCAD
- Basic Drawing Functions:
- Line drawing
- Circle drawing
- Arc drawing
- Rectangle drawing
- Polyline drawing
- Text addition
- Pattern filling
- Dimension annotation
- Layer Management: Create and switch layers
- Drawing Save: Save the current drawing as a DWG file
Natural Language Processing Functions
- Command Parsing: Parse natural language instructions into CAD operation parameters
- Color Recognition: Extract color information from text and apply it to drawing objects
- Shape Keyword Mapping: Support recognition of various shape description words
- Action Keyword Mapping: Recognize various drawing and editing actions
Demo

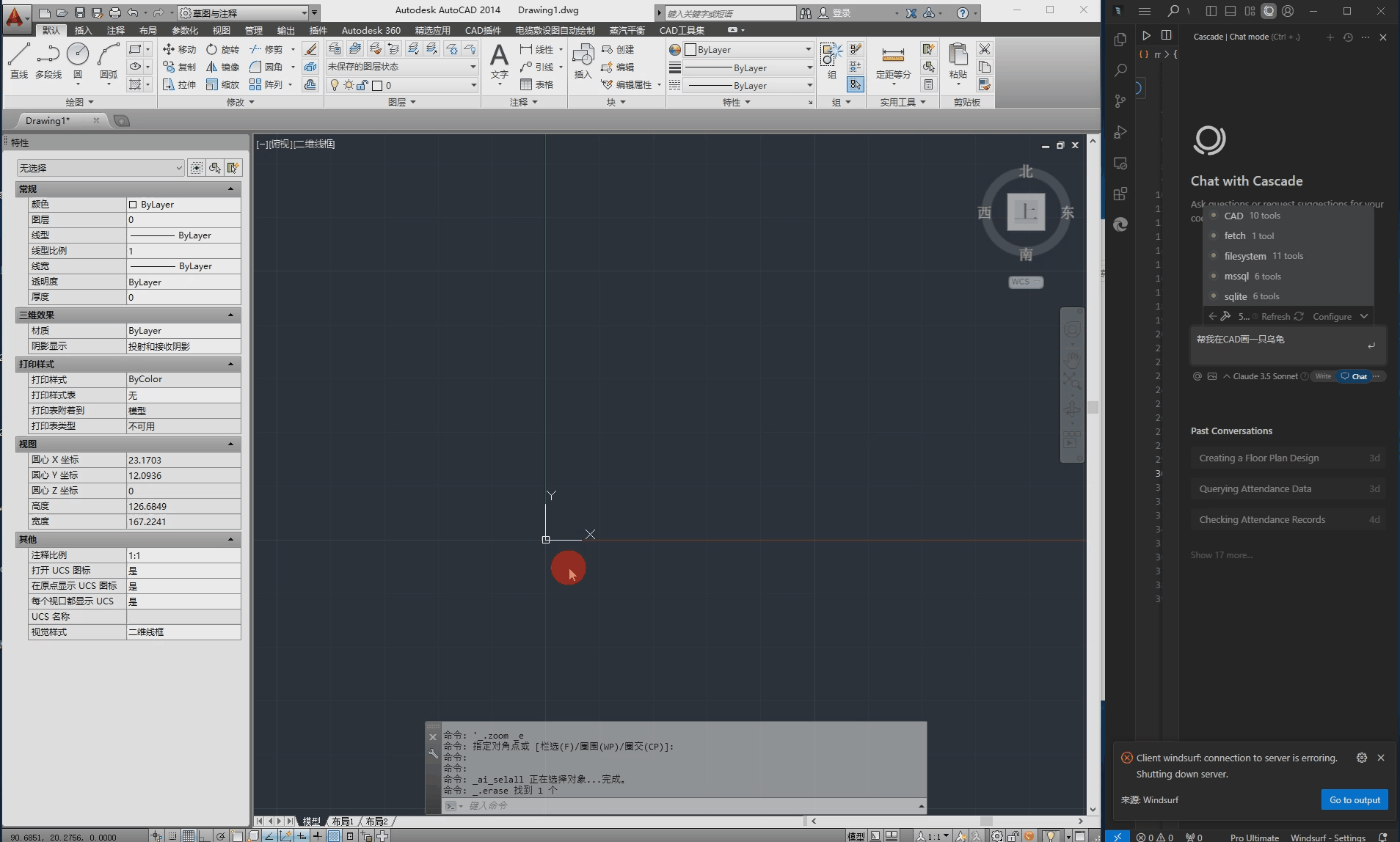

The following is the demo video.
Installation Requirements
Dependencies
pywin32>=228 # Windows COM interface support
mcp>=0.1.0 # Model Control Protocol library
pydantic>=2.0.0 # Data validation
typing>=3.7.4.3 # Type annotation support
System Requirements
- Windows operating system
- Installed CAD software (AutoCAD, GstarCAD, or ZWCAD)
Configuration
The configuration file is located at src/config.json and contains the following main settings:
{
"server": {
"name": "CAD MCP Server",
"version": "1.0.0"
},
"cad": {
"type": "AutoCAD",
"startup_wait_time": 20,
"command_delay": 0.5
},
"output": {
"directory": "./output",
"default_filename": "cad_drawing.dwg"
}
}
- server: Server name and version information
- cad:
type: CAD software type (AutoCAD, GCAD, GstarCAD, or ZWCAD)startup_wait_time: CAD startup waiting time (seconds)command_delay: Command execution delay (seconds)
- output: Output file settings
Usage
Starting the Service
python src/server.py
Claude Desktop & Windsurf
# add to claude_desktop_config.json. Note: use your path
{
"mcpServers": {
"CAD": {
"command": "python",
"args": [
# your path, e.g.: "C:\\cad-mcp\\src\\server.py"
"~/server.py"
]
}
}
}
Cursor

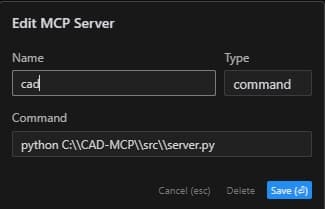

# Add according to the following diagram Cursor MCP. Note: use your path
NoteοΌThe new version of cursor has also been changed to JSON configuration, please refer to the previous section
MCP Inspector
# Note: use your path
npx -y @modelcontextprotocol/inspector python C:\\cad-mcp\\src\\server.py
Service API
The server provides the following main API functions:
draw_line: Draw a linedraw_circle: Draw a circledraw_arc: Draw an arcdraw_polyline: Draw a polylinedraw_rectangle: Draw a rectangledraw_text: Add textdraw_hatch: Draw a hatch patternadd_dimension: Add linear dimensionsave_drawing: Save the drawingprocess_command: Process natural language commands
Project Structure
CAD-MCP/
βββ imgs/ # Images and video resources
β βββ CAD-mcp.mp4 # Demo video
βββ requirements.txt # Project dependencies
βββ src/ # Source code
βββ __init__.py # Package initialization
βββ cad_controller.py # CAD controller
βββ config.json # Configuration file
βββ nlp_processor.py # Natural language processor
βββ server.py # Server implementation
License
MIT License
