pcnfernando/openapi-to-mcp-server

OpenAPI to MCP Converter

This project provides a bridge between OpenAPI specifications and the Model Context Protocol (MCP). It allows LLM-based tools like the MCP Inspector to interact with REST APIs defined using OpenAPI.

Features

• Dynamically converts OpenAPI specifications into MCP tools
• Exposes REST API endpoints as callable functions for LLMs
• Supports path parameters, query parameters, request bodies, and headers
• Handles authentication (Bearer tokens, Basic auth, API keys)
• Supports all HTTP methods (GET, POST, PUT, DELETE, etc.)
• Works with the MCP Inspector and other MCP clients

Prerequisites

• Java 11 or later
• Maven 3.6 or later
• An OpenAPI specification file (JSON format)
• MCP Inspector or another MCP client

Building the Project

1. Clone the repository:

   git clone https://github.com/pcnfernando/openapi-to-mcp.git
   cd openapi-to-mcp


2. Build the project with Maven:

   mvn clean package


   This will create a fat JAR with all dependencies included:

   target/openapi-mcp-0.1.0-SNAPSHOT-jar-with-dependencies.jar


Running the Server

Run the server with an OpenAPI specification file and the base URL of the API:

java -jar target/openapi-mcp-0.1.0-SNAPSHOT-jar-with-dependencies.jar /path/to/openapi.json https://api.example.com

Arguments:

• path/to/openapi.json: Path to your OpenAPI specification file
• https://api.example.com: Base URL of the API (optional, defaults to http://localhost:8080/api)

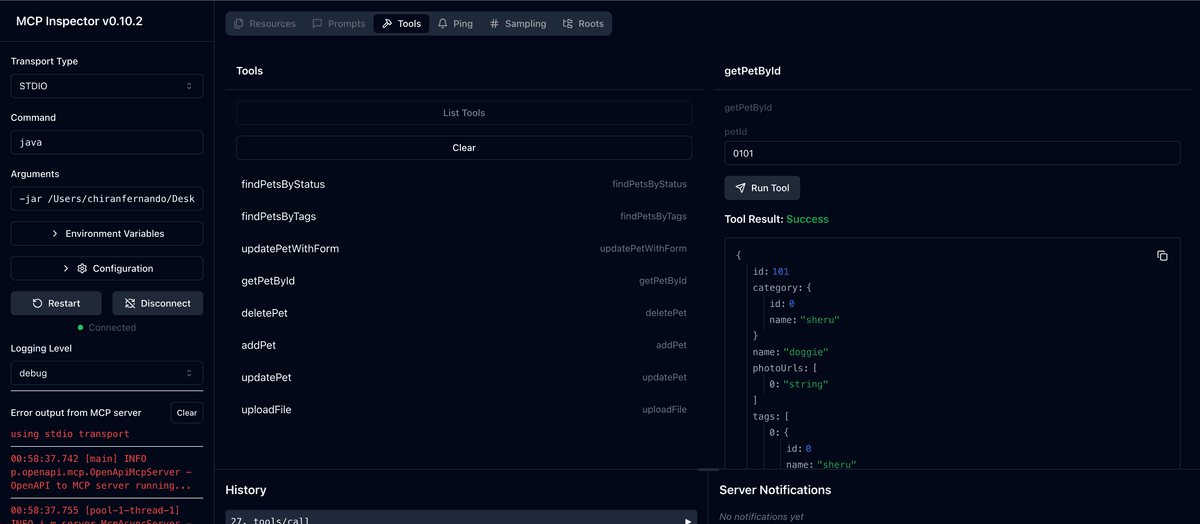

Connecting with MCP Inspector

1. Launch MCP Inspector
2. Select "Connect" or create a new connection
3. Use the following configuration:
   • Transport Type: stdio
   • Command: java
   • Arguments: -jar /absolute/path/to/target/openapi-mcp-0.1.0-SNAPSHOT-jar-with-dependencies.jar /absolute/path/to/openapi.json https://api.example.com Make sure to use absolute paths for both the JAR file and the OpenAPI specification file.
4. Connect to the server
5. You should now see all the API operations from your OpenAPI specification as available MCP tools

Connecting with Claude Desktop

1. Create or edit Claude's configuration file:

On macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
On Windows: %APPDATA%\Claude\claude_desktop_config.json\

2. Add your OpenAPI MCP server configuration:

   {
     "mcpServers": {
       "petstore": {
         "command": "java",
         "args": [
           "-jar",
           "/absolute/path/to/openapi-mcp-0.1.0-SNAPSHOT-jar-with-dependencies.jar",
           "/absolute/path/to/openapi.json",
           "https://api.example.com"
         ]
       }
     }
   }


3. Restart Claude Desktop for the changes to take effect.

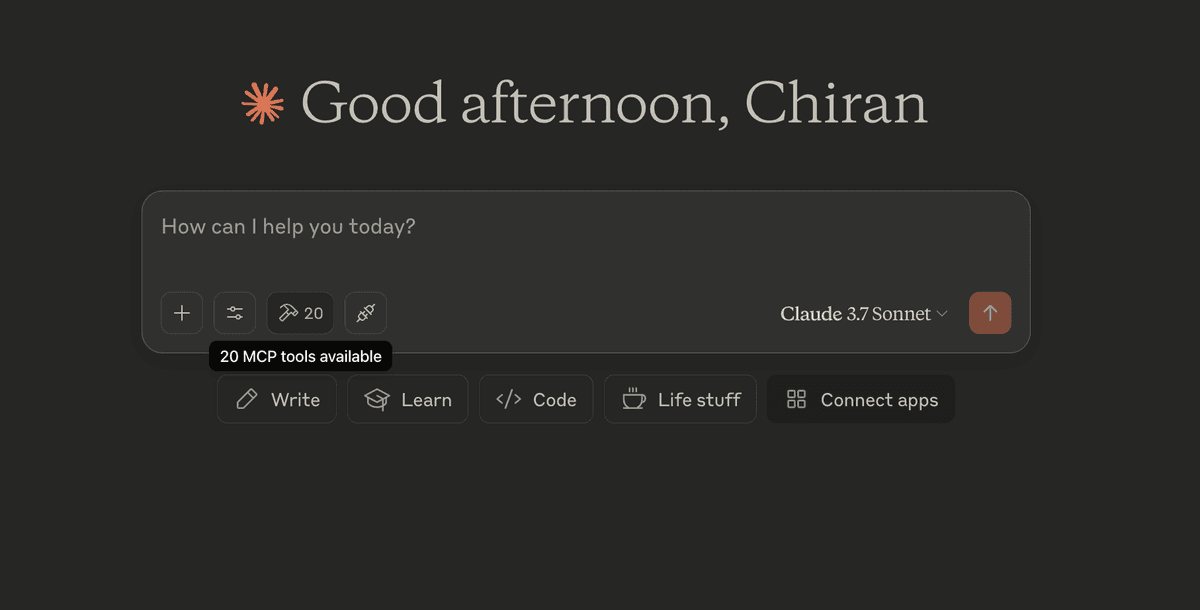

4. Verify the tools are available by looking for the hammer icon in the bottom right corner of the input box. Clicking on it should show your API operations as available tools.

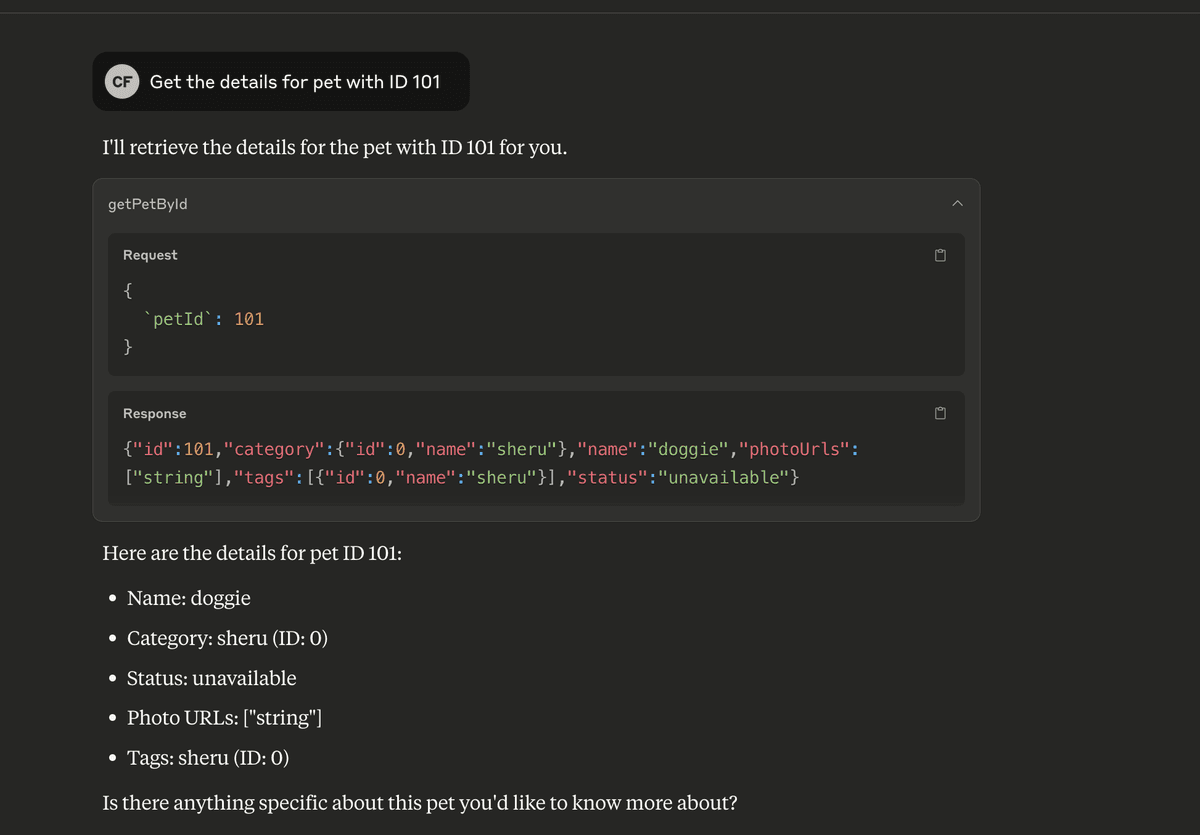

5. Test it out by asking Claude to perform operations using your API:

   Example: "Get the details for pet with ID 123 from the petstore API."



Claude will detect when to use the API operations and will ask for your approval before making the actual calls to the backend API.

Note that Claude Desktop will run the commands in the configuration file with the permissions of your user account, so only add commands from sources you trust.

Example: Using with Swagger Petstore

1. Save the Petstore OpenAPI spec to a file (e.g., petstore.json)
2. Connect with MCP Inspector using:
   • Command: java
   • Arguments: -jar /absolute/path/to/target/openapi-mcp-0.1.0-SNAPSHOT-jar-with-dependencies.jar /absolute/path/to/petstore.json https://petstore.swagger.io/v2
3. Available operations should include findPetsByStatus, getPetById, etc.

Authentication Support

The converter supports various authentication methods commonly used in REST APIs:

Bearer Token Authentication

{
  "operationId": "listItems",
  "auth_bearer": "your-jwt-token-here"
}

This will add the header: Authorization: Bearer your-jwt-token-here

Basic Authentication

{
  "operationId": "getUser",
  "auth_basic": "base64-encoded-credentials"
}

This will add the header: Authorization: Basic base64-encoded-credentials

API Key Authentication

{
  "operationId": "createItem",
  "auth_apikey": "your-api-key-here"
}

This will add the header: X-API-Key: your-api-key-here

Custom Headers

{
  "operationId": "updateItem",
  "header_X-Custom-Header": "custom-value"
}

This will add the header: X-Custom-Header: custom-value

Troubleshooting

Connection Issues

If you encounter connection issues:

1. Verify the base URL is correct and accessible:

   curl -v https://api.example.com/some-endpoint


2. Check network settings (proxies, firewalls)
3. Ensure the paths in your OpenAPI specification match the actual API endpoints

Authentication Problems

If you're having authentication issues:

1. Double-check your authentication parameters:

   • For Bearer tokens, use auth_bearer parameter
   • For Basic auth, use auth_basic parameter with Base64-encoded credentials
   • For API keys, use auth_apikey parameter

2. Verify the token/credentials are valid by testing with curl:

   curl -v -H "Authorization: Bearer your-token" https://api.example.com/endpoint


Java Errors

If you see Java errors:

1. Make sure you're using Java 11 or later:

   java -version


2. Check that your OpenAPI spec is valid JSON
3. Look for error details in the server logs

Embedding in Other Applications

1. Add the Dependency

Add the OpenAPI to MCP converter to your project:

<!-- Maven -->
<dependency>
    <groupId>pcnfernando.mcp</groupId>
    <artifactId>openapi-mcp</artifactId>
    <version>0.1.0</version>
</dependency>

// Gradle
implementation 'pcnfernando.mcp:openapi-mcp:0.1.0'

2. Basic Usage

Here's a simple example of embedding the MCP server in your application:

import pcnfernando.openapi.mcp.OpenApiMcpServer;

// Configure and start the server
OpenApiMcpServer server = OpenApiMcpServer.builder()
    .withOpenApiSpecFromFile("path/to/openapi.json")
    .withBaseUrl("https://api.example.com")
    .build();

// Start the server
server.start();

// Register shutdown hook
Runtime.getRuntime().addShutdownHook(new Thread(server::shutdown));

Configuration Options

The builder pattern provides several configuration options:

OpenAPI Specification

You can provide the OpenAPI specification in three ways:

// From a file
.withOpenApiSpecFromFile("path/to/openapi.json")

// From a URL
.withOpenApiSpecFromUrl("https://example.com/api/openapi.json")

// Directly as a string
.withOpenApiSpec(openApiSpecString)

API Base URL

Set the base URL for the API:

.withBaseUrl("https://api.example.com")

MCP Capabilities

Configure which MCP capabilities to enable and advertise:

.withCapabilities(capabilities -> capabilities
    .enableTools(true)        // Enable tools functionality
    .enableResources(true)    // Enable resources functionality
    .enablePrompts(false)     // Disable prompts functionality
    .advertiseTools(true)     // Advertise tools capability
    .advertiseResources(true) // Advertise resources capability
    .advertisePrompts(false)  // Don't advertise prompts capability
)

HTTP Headers

Add custom headers to all API requests:

// Add individual headers
.withAdditionalHeader("X-API-Key", "your-api-key")
.withAdditionalHeader("User-Agent", "MyApp/1.0")

// Or add multiple headers at once
.withAdditionalHeaders(Map.of(
    "X-API-Key", "your-api-key",
    "User-Agent", "MyApp/1.0"
))

Transport Configuration

Configure the transport mechanism (currently only STDIO is fully supported):

.withTransportType(OpenApiMcpServer.TransportType.STDIO)

Framework Integration

Spring Boot

For Spring Boot applications, create a configuration class:

@Configuration
public class OpenApiMcpConfig {

    @Value("${api.base-url}")
    private String apiBaseUrl;

    @Value("${api.spec-location}")
    private String apiSpecLocation;

    @Bean(destroyMethod = "shutdown")
    public OpenApiMcpServer openApiMcpServer() throws IOException {
        OpenApiMcpServer server = OpenApiMcpServer.builder()
                .withOpenApiSpecFromFile(apiSpecLocation)
                .withBaseUrl(apiBaseUrl)
                .build();

        server.start();
        return server;
    }
}

Environment Variables

The converter supports several environment variables for configuration:

• SERVER_URL_OVERRIDE: Override the base URL from the OpenAPI spec
• ENABLE_TOOLS: Enable/disable tools functionality (default: true)
• ENABLE_RESOURCES: Enable/disable resources functionality (default: false)
• ENABLE_PROMPTS: Enable/disable prompts functionality (default: false)
• CAPABILITIES_TOOLS: Advertise tools capability (default: true)
• CAPABILITIES_RESOURCES: Advertise resources capability (default: false)
• CAPABILITIES_PROMPTS: Advertise prompts capability (default: false)
• EXTRA_HEADERS: Additional headers to include in API requests

Security Considerations

When embedding the OpenAPI to MCP converter in production applications:

1. Implement proper authentication for APIs
2. Consider enabling TLS for API connections
3. Carefully control which API endpoints are exposed as tools
4. Sanitize descriptions to prevent prompt injection attacks
