SeaTunnel MCP Server

A Model Context Protocol (MCP) server for interacting with SeaTunnel through LLM interfaces like Claude.

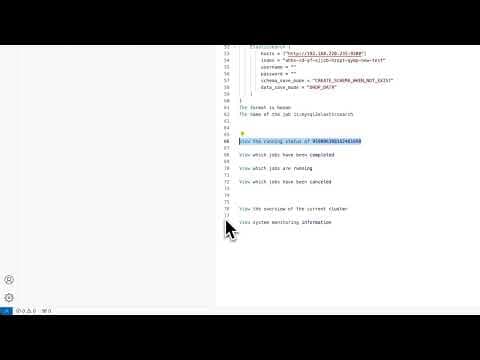

Operation Video

To help you better understand the features and usage of SeaTunnel MCP, we provide a video demonstration. Please refer to the link below or directly check the video file in the project documentation directory.

https://www.youtube.com/watch?v=JaLA8EkZD7Q

Tip: If the video does not play directly, make sure your device supports MP4 format and try opening it with a modern browser or video player.

Features

• Job management (submit, stop, monitor)
• System monitoring and information retrieval
• REST API interaction with SeaTunnel services
• Built-in logging and monitoring tools
• Dynamic connection configuration
• Comprehensive job information and statistics

Installation

# Clone repository
git clone <repository_url>
cd seatunnel-mcp

# Create virtual environment and install
python -m venv .venv
source .venv/bin/activate  # On Windows: .venv\Scripts\activate
pip install -e .

Requirements

• Python ≥ 3.12
• Running SeaTunnel instance
• Node.js (for testing with MCP Inspector)

Usage

Environment Variables

SEATUNNEL_API_URL=http://localhost:8090  # Default SeaTunnel REST API URL
SEATUNNEL_API_KEY=your_api_key           # Optional: Default SeaTunnel API key

Dynamic Connection Configuration

The server provides tools to view and update connection settings at runtime:

• get-connection-settings: View current connection URL and API key status
• update-connection-settings: Update URL and/or API key to connect to a different SeaTunnel instance

Example usage through MCP:

// Get current settings
{
  "name": "get-connection-settings"
}

// Update connection settings
{
  "name": "update-connection-settings",
  "arguments": {
    "url": "http://new-host:8090",
    "api_key": "new-api-key"
  }
}

Job Management

The server provides tools to submit and manage SeaTunnel jobs:

• submit-job: Submit a new job with job configuration
• submit-jobs: Submit multiple jobs in batch
• stop-job: Stop a running job
• get-job-info: Get detailed information about a specific job
• get-running-jobs: List all currently running jobs
• get-finished-jobs: List all finished jobs by state (FINISHED, CANCELED, FAILED, etc.)

Running the Server

python -m src.seatunnel_mcp

Usage with Claude Desktop

To use this with Claude Desktop, add the following to your claude_desktop_config.json:

{
  "mcpServers": {
    "seatunnel": {
      "command": "python",
      "args": ["-m", "src.seatunnel_mcp"],
      "cwd": "Project root directory"
    }
  }
}

Testing with MCP Inspector

npx @modelcontextprotocol/inspector python -m src.seatunnel_mcp

Available Tools

Connection Management

• get-connection-settings: View current SeaTunnel connection URL and API key status
• update-connection-settings: Update URL and/or API key to connect to a different instance

Job Management

• submit-job: Submit a new job with configuration in HOCON format
• submit-job/upload: submit job source upload configuration file
• submit-jobs: Submit multiple jobs in batch, directly passing user input as request body
• stop-job: Stop a running job with optional savepoint
• get-job-info: Get detailed information about a specific job
• get-running-jobs: List all currently running jobs
• get-running-job: Get details about a specific running job
• get-finished-jobs: List all finished jobs by state

System Monitoring

• get-overview: Get an overview of the SeaTunnel cluster
• get-system-monitoring-information: Get detailed system monitoring information

Changelog

v1.2.0 (2025-06-10)

New Features in v1.2.0

• SSE Support: Added st-mcp-sse for real-time communication with SeaTunnel MCP via Server-Sent Events (SSE). Corresponding sse branch
• UV/Studio Mode: Added st-mcp-uv (or st-mcp-studio) to support running the MCP server using the uv tool for improved performance and async support. Corresponding to uv branch

Example claude_desktop_config.json:

{
  "mcpServers": {
    "st-mcp-sse": {
      "url": "http://your-server:18080/sse"
    },
    "st-mcp-uv": {
      "command": "uv",
      "args": ["run", "seatunnel-mcp"],
      "env": {
        "SEATUNNEL_API_URL": "http://127.0.0.1:8080"
      }
    }
  }
}

v1.1.0 (2025-04-10)

• New Feature: Added submit-jobs and submit-job/upload tool for batch job submission and Document submission operations
  • Allows submitting multiple jobs at once with a single API call
  • Input is passed directly as the request body to the API
  • Supports JSON format for job configurations
  • Allow submission of jobs based on documents

v1.0.0 (Initial Release)

• Initial release with basic SeaTunnel integration capabilities
• Job management tools (submit, stop, monitor)
• System monitoring tools
• Connection configuration utilities

License

Apache License
