systems-mcp is an MCP server designed for interacting with the lethain:systems library for systems modeling.
systems-mcp
systems-mcp is an MCP server for interacting with
the lethain:systems library for systems modeling.
It provides two tools:
run_systems_modelruns thesystemsspecification of a systems model. Takes two parameters, the specification and, optionally, the number of rounds to run the model (defaulting to 100).load_systems_documentationloads documentation and examples into the context window. This is useful for priming models to be more helpful at writing systems models.
It is intended for running locally in conjunction with Claude Desktop or a similar tool.
Usage

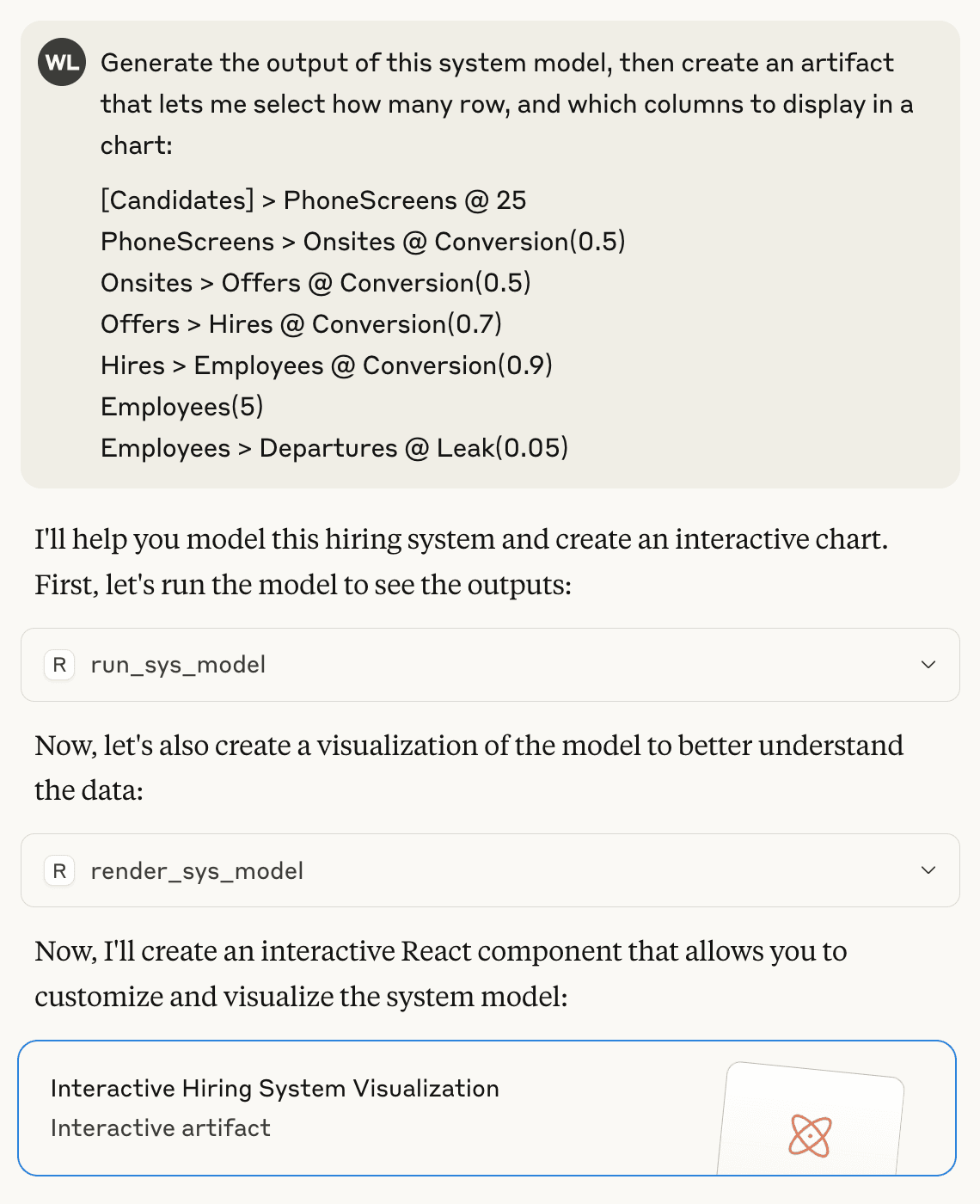

Here's an example of using systems-mcp to run and render a model.

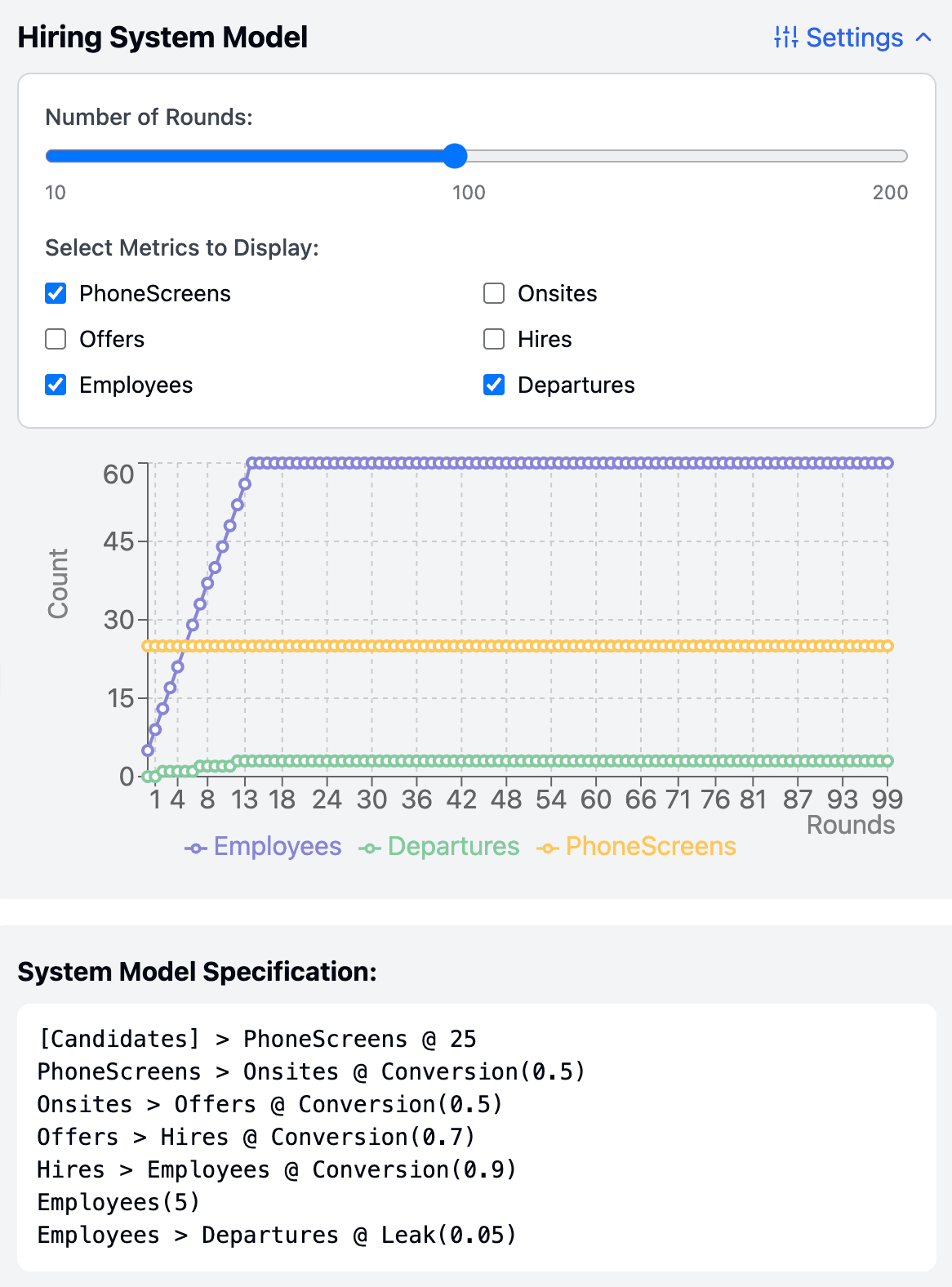

Here is the artifact generated from that prompt, including the output from running the systems model.

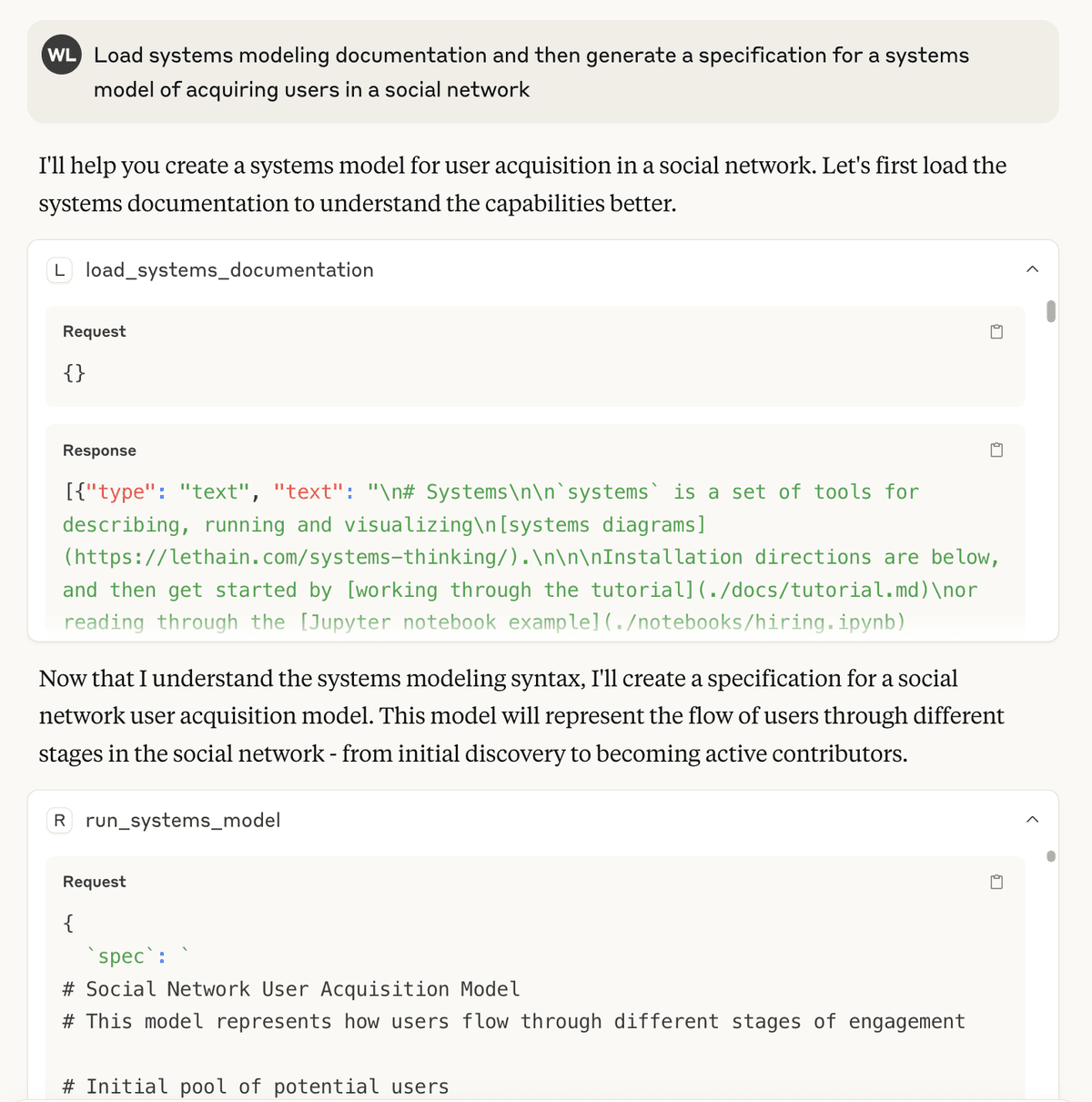

Finally, here is an example of using the load_systems_documentation tool to prime
the context window and using it to help generate a systems specification.
This is loosely equivalent to including lethain:systems/README.md in the context window,
but also includes a handful of additional examples
(see the included files in .

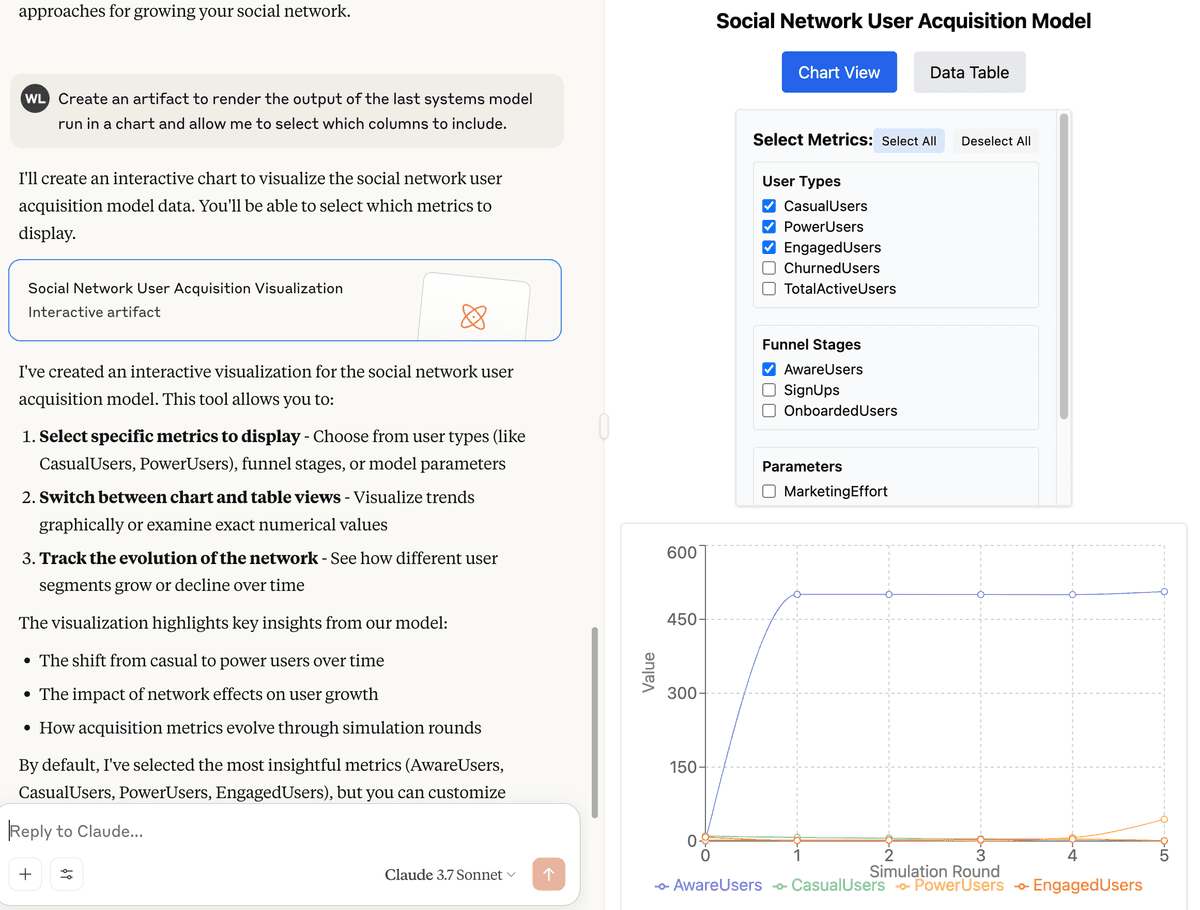

Then you can render the model as before.
The most interesting piece here is that I've never personally used systems to model a social network,
but the LLM was able to do a remarkably decent job at generating a specification despite that.
Installation
These instructions describe installation for Claude Desktop on OS X. It should work similarly on other platforms.
-
Install Claude Desktop.
-
Clone systems-mcp into a convenient location, I'm assuming
/Users/will/systems-mcp -
Make sure you have
uvinstalled, you can follow these instructions -
Go to Cladue Desktop, Setting, Developer, and have it create your MCP config file. Then you want to update your
claude_desktop_config.json. (Note that you should replacewillwith your user, e.g. the output ofwhoami.cd /Users/will/Library/Application Support/Claude vi claude_desktop_config.jsonThen add this section:
{ "mcpServers": { "systems": { "command": "uv", "args": [ "--directory", "/Users/will/systems-mcp", "run", "main.py" ] } } } -
Close Claude and reopen it.
-
It should work...
