n8n Workflow Builder MCP

This project provides a Model Context Protocol (MCP) server for building and manipulating n8n workflows JSON in Cursor IDE. It's a way to build n8n workflows just by prompting with AI in chat.

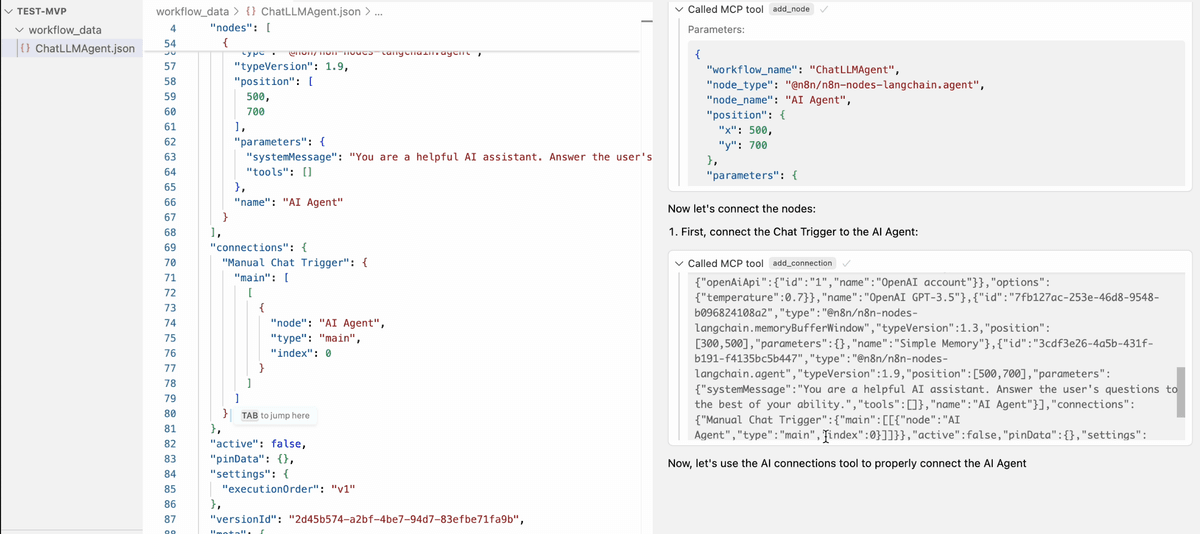

DEMO VIDEO:

Current status of implementation

It's in early development stage. Basically, it's working - MCP server creates JSON file with n8n workflow that you can copy and paste to workflow editor in n8n UI. Current problems:

• sometimes llm agents put wrong parameters in the request. I plan to find a way to fix this.
• sometimes connection between nodes is not setting. I'm working to resolve it.
• not all types of node are checked working. I'm working to resolve it.
• initial prompt does matter. If it's not clear, the agent will go wrong way. I plan to find a way to fix this.

Key Features

• Workflow Management: Create, update, and execute n8n workflows programmatically (execute is not implemented yet)
• Node Discovery: Explore available n8n nodes and their capabilities
• Connection Management: Create connections between workflow nodes
• AI Integration: Special tools for connecting AI components in workflows
• AI-Friendly Interface: Designed specifically for interaction with AI agents

Prerequisites

• Node.js (v14 or higher)
• Cursor IDE (v0.48 or newer)
• npm (for npx command)

Installation & Setup

Recommended: Using npx in mcp.json (Easiest)

The recommended way to install this MCP server is using npx directly in your .cursor/mcp.json file:

{
  "mcpServers": {
    "n8n-workflow-builder": {
      "command": "npx",
      "args": [
        "-y",
        "n8n-workflow-builder-mcp"
      ],
      "env": {
        "N8N_API_URL": "http://localhost:5678",
        "N8N_API_KEY": "your-n8n-api-key-here"
      }
    }
  }
}

This approach:

• ✅ Automatically installs the latest version
• ✅ Does not require global installation
• ✅ Works reliably across different environments
• ✅ No manual building or path configuration needed

Setup Steps:

1. Create the .cursor directory in your project root (if it doesn't exist):

   mkdir -p .cursor


2. Create or update .cursor/mcp.json with the configuration above, replacing:

   • N8N_API_URL: Your n8n instance URL (default: http://localhost:5678)
   • N8N_API_KEY: Your n8n API key from the n8n settings

3. Restart Cursor IDE for changes to take effect

Getting your n8n API Key:

1. Open your n8n instance in a browser
2. Go to Settings > API Keys
3. Click "Create API Key"
4. Copy the generated key and use it in your configuration

Alternative: Development Installation

For development or local testing, you can clone and build from source:

1. Clone the repository:

   git clone https://github.com/ifmelate/n8n-workflow-builder-mcp.git
   cd n8n-workflow-builder-mcp


2. Install dependencies:

   npm install


3. Build the TypeScript project:

   npm run build


4. Configure in .cursor/mcp.json:

   {
     "mcpServers": {
       "n8n-workflow-builder": {
         "command": "node",
         "args": ["/absolute/path/to/n8n-workflow-builder-mcp/dist/index.js"],
         "env": {
           "N8N_API_URL": "http://localhost:5678",
           "N8N_API_KEY": "your-n8n-api-key-here"
         }
       }
     }
   }


5. For development with auto-rebuild:

   npm run dev


Cursor IDE Integration

Using Cursor Settings UI (Optional)

Alternatively, you can set up the MCP server through Cursor's interface:

1. Start Cursor IDE
2. Go to Settings > Features > MCP Servers
3. Click "Add Server"
4. For npx method: Use command npx with args ["-y", "n8n-workflow-builder-mcp"]
5. Add environment variables:
   • N8N_API_URL: http://localhost:5678
   • N8N_API_KEY: your-n8n-api-key-here
6. Make sure the server is enabled
7. Restart Cursor IDE for changes to take effect

Available MCP Tools

The server provides the following tools for working with n8n workflows:

Troubleshooting Cursor Integration

If you're having trouble getting the MCP server to work with Cursor, try these steps:

For npx installation (Recommended method):

Make sure your .cursor/mcp.json file is properly formatted:

{
  "mcpServers": {
    "n8n-workflow-builder": {
      "command": "npx",
      "args": ["-y", "n8n-workflow-builder-mcp"]
    }
  }
}

General troubleshooting:

1. Check Cursor MCP settings:

   • Open Cursor Settings
   • Go to Features > MCP Servers
   • Make sure your server is listed and enabled
   • If it's listed but not working, try clicking the refresh button

2. Check server logs: Look for errors in the Cursor Output panel. Select "Cursor MCP" from the dropdown in the Output panel to see MCP-specific logs.

3. Try manual installation: If npx fails, try the global installation method as an alternative:

   npm install -g n8n-workflow-builder-mcp


Common Issues and Solutions

"Failed to create client" or "Module not found"

This usually happens when:

• Internet connection issues prevent npx from downloading the package
• Node.js/npm version compatibility issues
• Cursor MCP service is not running properly

Try:

1. Check your internet connection
2. Update Node.js to the latest LTS version
3. Restart Cursor completely
4. Try the global installation method as fallback

MCP Server is not showing up in Cursor

This can happen if:

• The .cursor/mcp.json file is not properly formatted
• Cursor hasn't detected the configuration change
• File permissions on the .cursor directory

Try:

1. Validating the JSON format of your .cursor/mcp.json file
2. Restarting Cursor
3. Manually selecting the server in Cursor settings (if it appears there)
4. Check file permissions: chmod 755 .cursor

MCP Server shows up but tools aren't available

This can happen if:

• The server isn't properly registering its tools
• Package installation is incomplete
• Version compatibility issues

Try:

1. Check the package was downloaded correctly by npx
2. Clicking the refresh button in the MCP server settings in Cursor
3. Try clearing npm cache: npm cache clean --force
4. Use the development installation method for debugging

Project Structure

• /src: Main source code
• /src/tools: MCP tools implementation
• /src/models: Data models
• /src/utils: Utility functions
• /src/middleware: Authentication and middleware
• /config: Configuration files
• /tests: Test files
• /workflow_nodes: n8n node definitions
• /docs: Additional documentation

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

1. Fork the repository
2. Create your feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add some amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

License

MIT License
