DINO-X-MCP

DINO-X MCP

English |

Enables large language models to perform fine-grained object detection and image understanding, powered by DINO-X and Grounding DINO 1.6 API.

💡 Why DINO-X MCP?

Although multimodal models can understand and describe images, they often lack precise localization and high-quality structured outputs for visual content.

With DINO-X MCP, you can:

🧠 Achieve fine-grained image understanding — both full-scene recognition and targeted detection based on natural language.

🎯 Accurately obtain object count, position, and attributes, enabling tasks such as visual question answering.

🧩 Integrate with other MCP Servers to build multi-step visual workflows.

🛠️ Build natural language-driven visual agents for real-world automation scenarios.

🎬 Use Case

🎯 Scenario	📝 Input	✨ Output

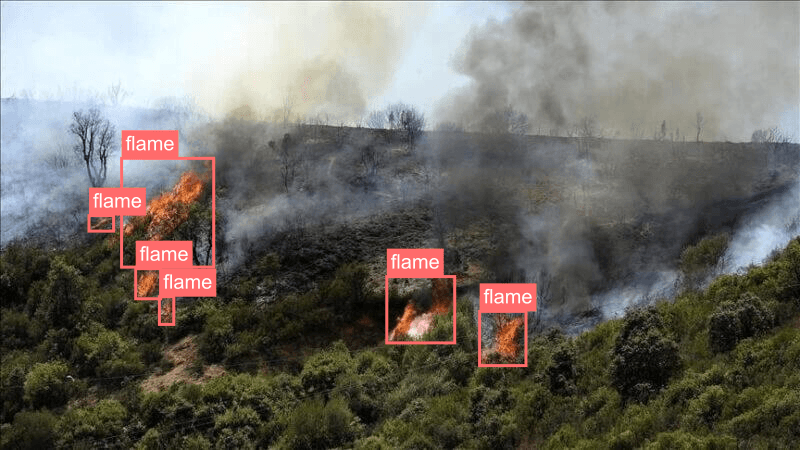

Detection & Localization	💬 Prompt: Detect and visualize the fire areas in the forest 🖼️ Input Image:

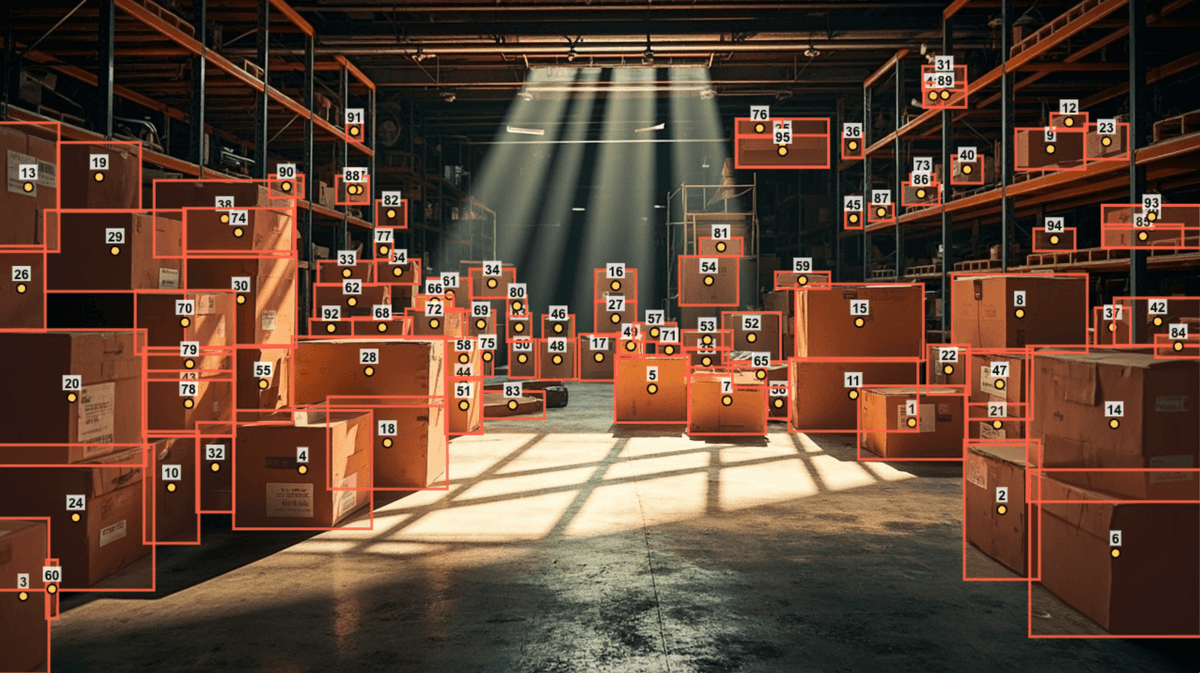

Object Counting	💬 Prompt: Please analyze this warehouse image, detect all the cardboard boxes, count the total number 🖼️ Input Image:

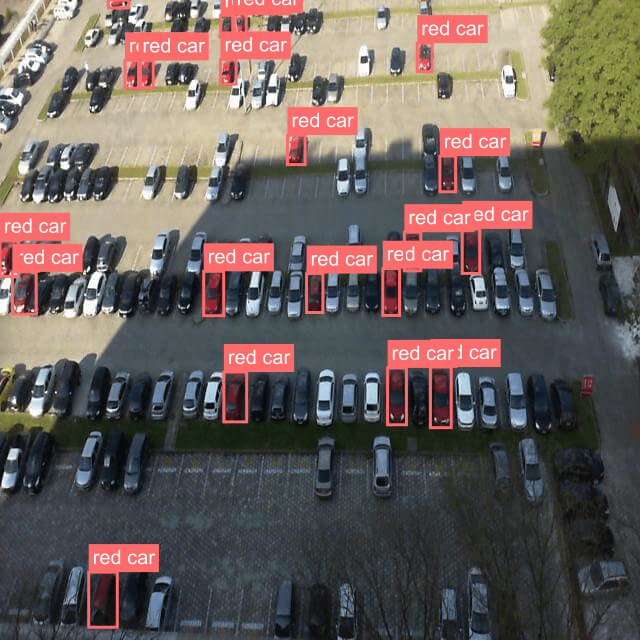

Feature Detection	💬 Prompt: Find all red cars in the image 🖼️ Input Image:

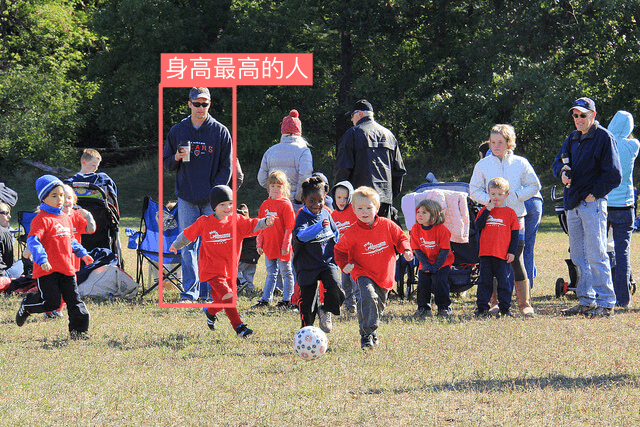

Attribute Reasoning	💬 Prompt: Find the tallest person in the image, describe their clothing 🖼️ Input Image:

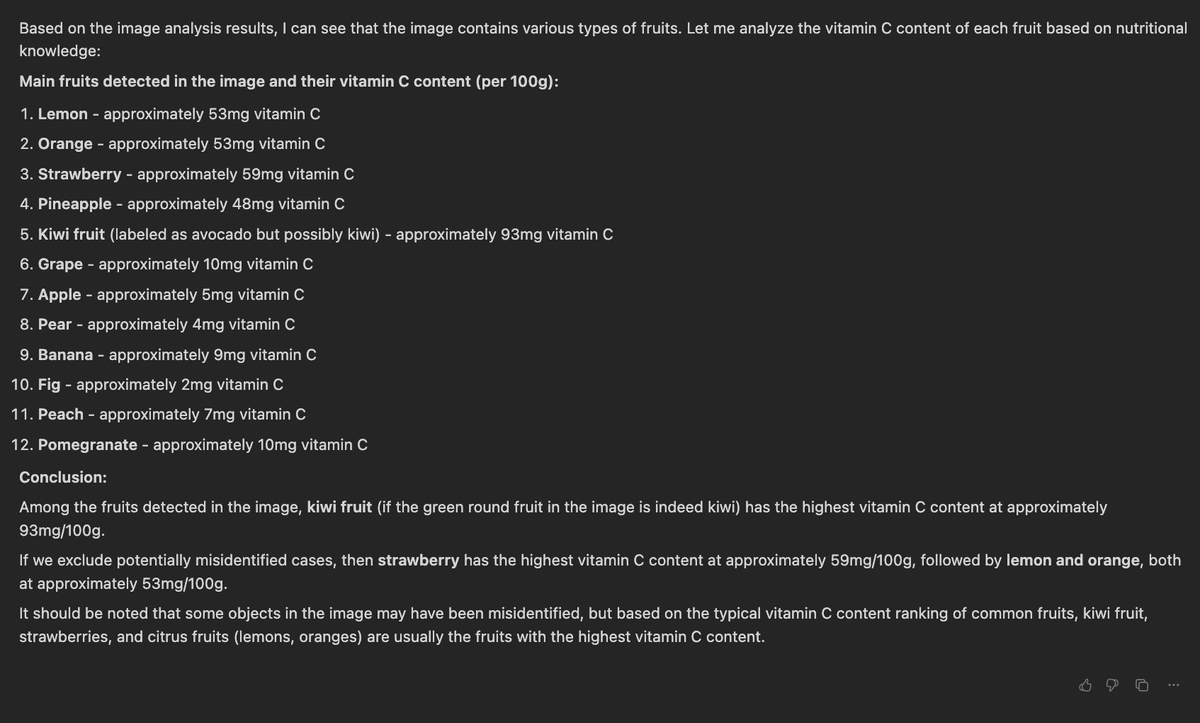

Full Scene Detection	💬 Prompt: Find the fruit with the highest vitamin C content in the image 🖼️ Input Image:	Answer: Kiwi fruit (93mg/100g)

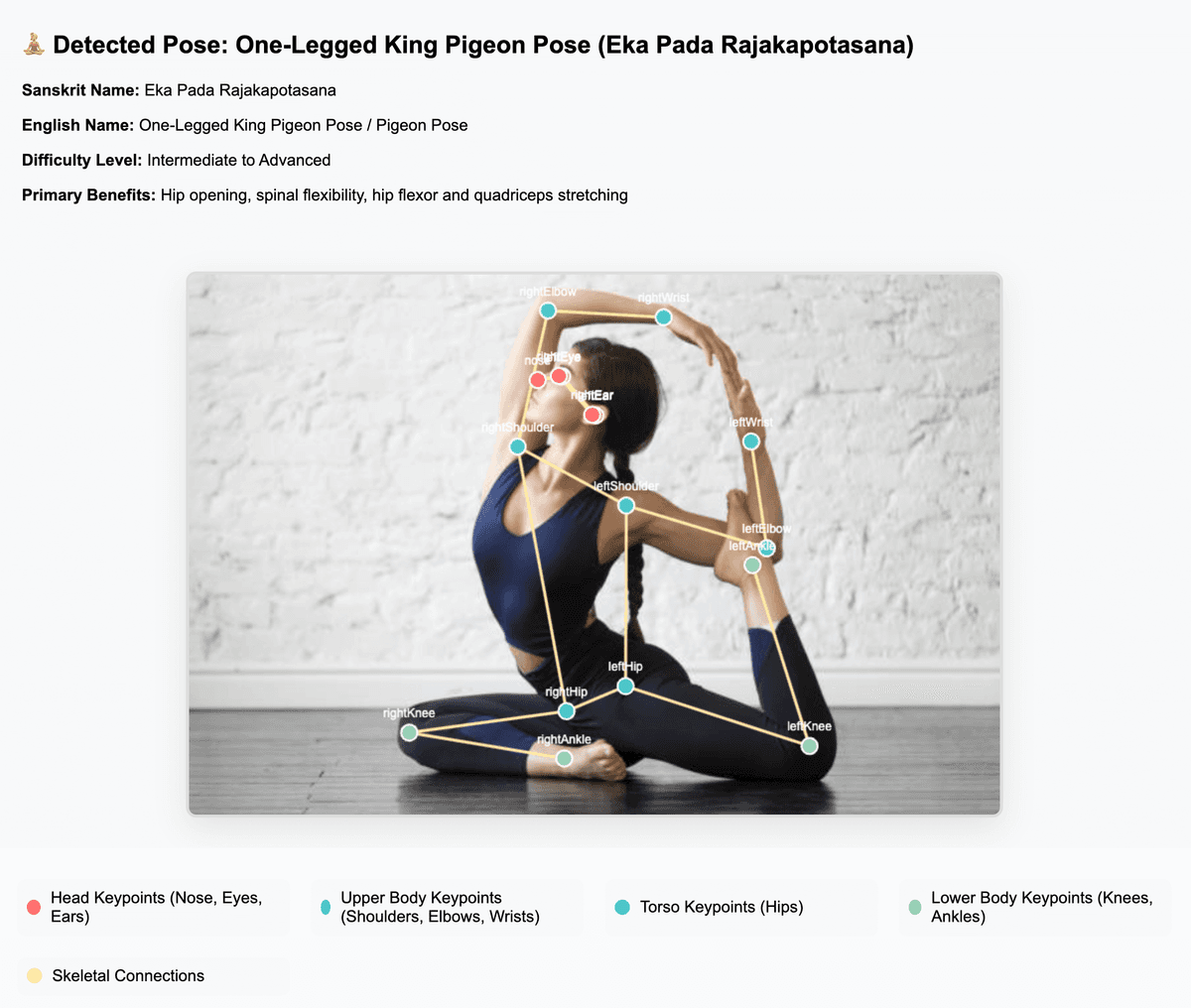

Pose Analysis	💬 Prompt: Please analyze what yoga pose this is 🖼️ Input Image:

🚀 Quick Start

1. Prerequisites

You can install Node.js using one of the following methods:

Option A: Command 👍

# For MacOS or Linux
# 1. Install nvm (Node Version Manager)
curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash
# OR
wget -qO- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash

# 2. Add these lines to your profile (~/.bash_profile, ~/.zshrc, ~/.profile, or ~/.bashrc)
export NVM_DIR="$HOME/.nvm"
[ -s "$NVM_DIR/nvm.sh" ] && \. "$NVM_DIR/nvm.sh"
[ -s "$NVM_DIR/bash_completion" ] && \. "$NVM_DIR/bash_completion"

# 3. Activate nvm in current shell
source ~/.bashrc
# Or
source ~/.zshrc

# 4. Verify nvm installation
command -v nvm

# 5. Install and use LTS version of Node.js
nvm install --lts
nvm use --lts

# For Windows
winget install OpenJS.NodeJS.LTS
# Or using PowerShell (Administrator)
iwr -useb https://raw.githubusercontent.com/chocolatey/chocolatey/master/chocolateyInstall/InstallChocolatey.ps1 | iex
choco install nodejs-lts -y

Option B: Manual Installation

Download the installer from nodejs.org

Also, choose an AI assistants and applications that support the MCP Client, including but not limited to:

• Cursor
• WindSurf
• Trae
• Cherry Studio

2. Configure MCP Sever

You can use DINO-X MCP server in two ways:

Option A: Using NPM Package 👍

Add the following configuration in your MCP client:

{
  "mcpServers": {
    "dinox-mcp": {
      "command": "npx",
      "args": ["-y", "@deepdataspace/dinox-mcp"],
      "env": {
        "DINOX_API_KEY": "your-api-key-here",
        "IMAGE_STORAGE_DIRECTORY": "/path/to/your/image/directory"
      }
    }
  }
}

Option B: Using Local Project

First, clone and build the project:

# Clone the project
git clone https://github.com/IDEA-Research/DINO-X-MCP.git
cd DINO-X-MCP

# Install dependencies
pnpm install

# Build the project
pnpm run build

Then configure your MCP client:

{
  "mcpServers": {
    "dinox-mcp": {
      "command": "node",
      "args": ["/path/to/DINO-X-MCP/build/index.js"],
      "env": {
        "DINOX_API_KEY": "your-api-key-here",
        "IMAGE_STORAGE_DIRECTORY": "/path/to/your/image/directory"
      }
    }
  }
}

3. Get API Key

Get your API key from DINO-X Platform (A free quota is available for new users).

Replace your-api-key-here in the configuration above with your actual API key.

4. Environment Variables

The DINO-X MCP server supports the following environment variables:

5. Available Tools

Restart your MCP client, and you should be able to use the following tools:

📝 Usage

Supported Image Formats

• Remote URLs starting with https:// 👍
• Local file paths (starting with file://)
• Common image formats: jpg, jpeg, png, webp

API Docs

Please refer to DINO-X Platform for API usage limits and pricing information.

🛠️ Development

Watch Mode

During development, you can use watch mode for automatic rebuilding:

pnpm run watch

Debugging

Use MCP Inspector to debug the server:

pnpm run inspector

License

Apache License 2.0
